Milling is a pivotal process in machining, integral to various industries such as automotive, aerospace, and manufacturing. It involves removing material from a workpiece using a rotating cutting tool. The two main types of milling techniques—climb milling and conventional milling—are distinguished by their cutting directions and interactions with the material. While both methods are widely used, understanding their differences is essential for selecting the appropriate technique based on factors like efficiency, precision, and material type. This article will explore the key distinctions, advantages, disadvantages, and ideal applications of both milling processes to help you make an informed decision.
Climb milling, also called down milling, is a process where the cutting tool and the workpiece move in the same direction. The tool enters the material from the top, gradually pulling it into the cutter. This method allows the tool to work with the grain of the material, making it more efficient in certain applications. The gradual entry reduces the stress on the tool and workpiece, leading to smoother cuts. Climb milling is commonly used in high-volume production environments, particularly when roughing cuts are needed, as it allows for faster material removal and improved surface finishes.
The key benefit of climb milling is its efficiency. The tool is able to remove material faster and with less heat buildup, extending tool life and reducing the need for frequent tool changes. However, this process is more suited for machines with advanced controls and features, as older machines may experience backlash that could compromise the precision of the cut.
Conventional milling, or up milling, works differently. In this process, the cutting tool and the workpiece move in opposite directions. As the tool enters the material, it pushes the material away. This method creates more stress on the cutting tool and workpiece compared to climb milling, as the cutting force is directed in the opposite direction.
Conventional milling is widely used for materials that are more rigid or require high levels of control during the cutting process. It's the preferred method when machining smaller, more precise parts, especially when machine stability is critical. While conventional milling is less efficient than climb milling in terms of speed, it provides more control and is less likely to cause tool deflection, making it ideal for certain applications.

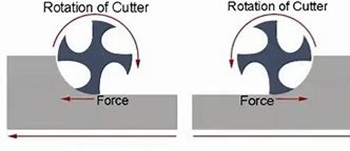

The primary difference between the two milling methods lies in the cutting direction. In climb milling, both the tool and workpiece move in the same direction, producing a smoother cut and minimizing the chances of material displacement. Conventional milling, on the other hand, involves the tool and workpiece moving in opposite directions, resulting in a more aggressive cut that can lead to a rougher surface finish.
Here's a table summarizing the key differences between climb and conventional milling:
| Aspect | Climb Milling | Conventional Milling |
|---|---|---|
| Cutting Direction | Tool and workpiece move in the same direction | Tool and workpiece move in opposite directions |
| Tool Interaction | Gradual entry, reduces vibration and heat | More aggressive, leads to higher forces and vibrations |
| Efficiency | Faster material removal, less heat buildup | Slower material removal, more heat generation |
| Surface Finish | Smoother finish, reduces the need for post-processing | Rougher finish, may require additional work |
| Tool Wear | Less tool wear due to lower cutting forces | Faster tool wear due to higher friction and forces |
Efficiency: Climb milling removes material quickly and requires less force, making it suitable for high-volume production. The reduced heat buildup extends tool life and reduces tool change frequency.
Surface Finish: The gradual entry of the tool into the material produces a smoother surface finish, minimizing the need for additional finishing processes.
Lower Tool Load: The consistent cutting forces place less strain on the tool, extending tool life and allowing for longer production runs with fewer maintenance needs.
Workholding: Climb milling requires less force to secure the workpiece, making it easier to hold material in place and reducing the risk of material displacement during machining.
Stability: Conventional milling provides more stability, particularly when working with thicker or more rigid materials. The predictable forces make it ideal for maintaining control during intricate tasks.
Backlash Resistance: The method is less susceptible to backlash, making it a better option for older machines or setups requiring high stability.
Precise Control: Conventional milling allows for more precise cuts, which is crucial when dealing with small, intricate parts or when exact dimensions are needed.
Manual Machining: Conventional milling is easier to control manually, as the predictable forces make it a better choice for setups that require operator control.
Backlash: Climb milling can cause backlash, especially in older machines or those without precise controls. This can result in inaccuracies and poor surface finishes.
Tool Deflection: Larger cuts or harder materials can lead to tool deflection, affecting the accuracy of the cut. This is particularly problematic when high precision is required.
Machine Condition Sensitivity: Climb milling requires modern, rigid machines. Older machines may struggle with this technique, leading to inaccuracies or mechanical issues over time.
Safety Concerns: The forces in climb milling can cause the workpiece to be pulled into the tool, increasing the risk of part movement during machining and possibly leading to accidents.
Lower Efficiency: Conventional milling requires more force to remove material, making the process slower and less efficient, especially for roughing cuts.
Tool Wear: The increased friction and heat generation during conventional milling lead to faster tool wear, which raises operational costs due to the need for frequent tool replacements.
Slower Process: Conventional milling is slower than climb milling, particularly when material needs to be removed in larger quantities. This makes it less suitable for high-volume production.
Increased Heat Generation: Due to the increased friction between the tool and material, conventional milling produces more heat, which can affect the overall efficiency and tool life.
Climb milling is ideal for applications where efficiency, tool life, and surface finish are crucial. It excels in roughing cuts, where large amounts of material need to be removed quickly. Industries such as aerospace, automotive, and general manufacturing benefit from climb milling's ability to reduce cycle times and improve tool life in high-volume production.
Climb milling is also highly effective when working with large, rigid parts, where the forces involved in the cutting process can be better managed. Its efficiency makes it perfect for machining harder materials, such as steel and titanium, where heat generation is a concern in conventional milling.
Conventional milling is often the preferred choice for applications requiring high precision, delicate cuts, and control. It is ideal for small, precise cuts on intricate components. This makes it well-suited for industries like medical device manufacturing, where accuracy is critical. Conventional milling is also commonly used in manual machining setups where operators need to exercise control over the cutting process.
When tool deflection sensitivity is a concern, conventional milling's gradual cutting action makes it more stable. It's also the preferred method for finishing cuts, where the goal is to achieve a smooth, high-quality surface finish without introducing the risk of material deformation.
In conclusion, the choice between climb milling and conventional milling depends on the specific needs of the machining task. Climb milling excels in high-speed, high-volume production due to its efficiency and ability to produce smoother finishes, making it ideal for large, rigid parts and tougher materials. Conventional milling, however, offers better control and stability, which is essential for precision tasks and smaller cuts. At DADESIN, we understand the importance of selecting the right milling method for your project, and our team is here to provide expert guidance to help you make the best choice for your machining needs.
