CNC prototype machining is a fast, precise, and efficient way to create functional prototypes before mass production. It ensures high accuracy, supports various materials, and helps manufacturers test and refine designs. This guide explores its processes, benefits, and applications in modern industries.

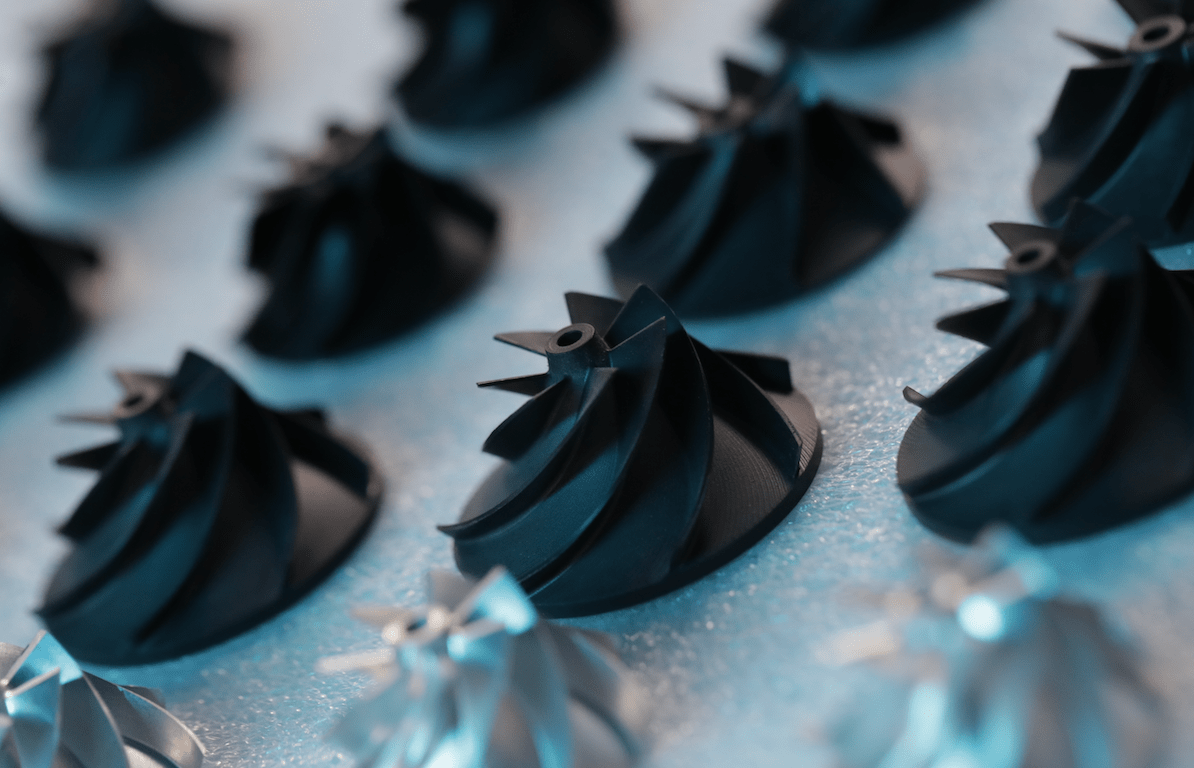

CNC prototype machining is a subtractive manufacturing process that transforms digital designs into physical parts using computer-controlled cutting tools. Unlike 3D printing, it removes material from a solid block to achieve high precision and repeatability.
This process is widely used in product development, allowing engineers to create functional, high-accuracy prototypes before mass production. It supports various materials, including metals and plastics, ensuring that prototypes closely match final products in mechanical properties and durability.

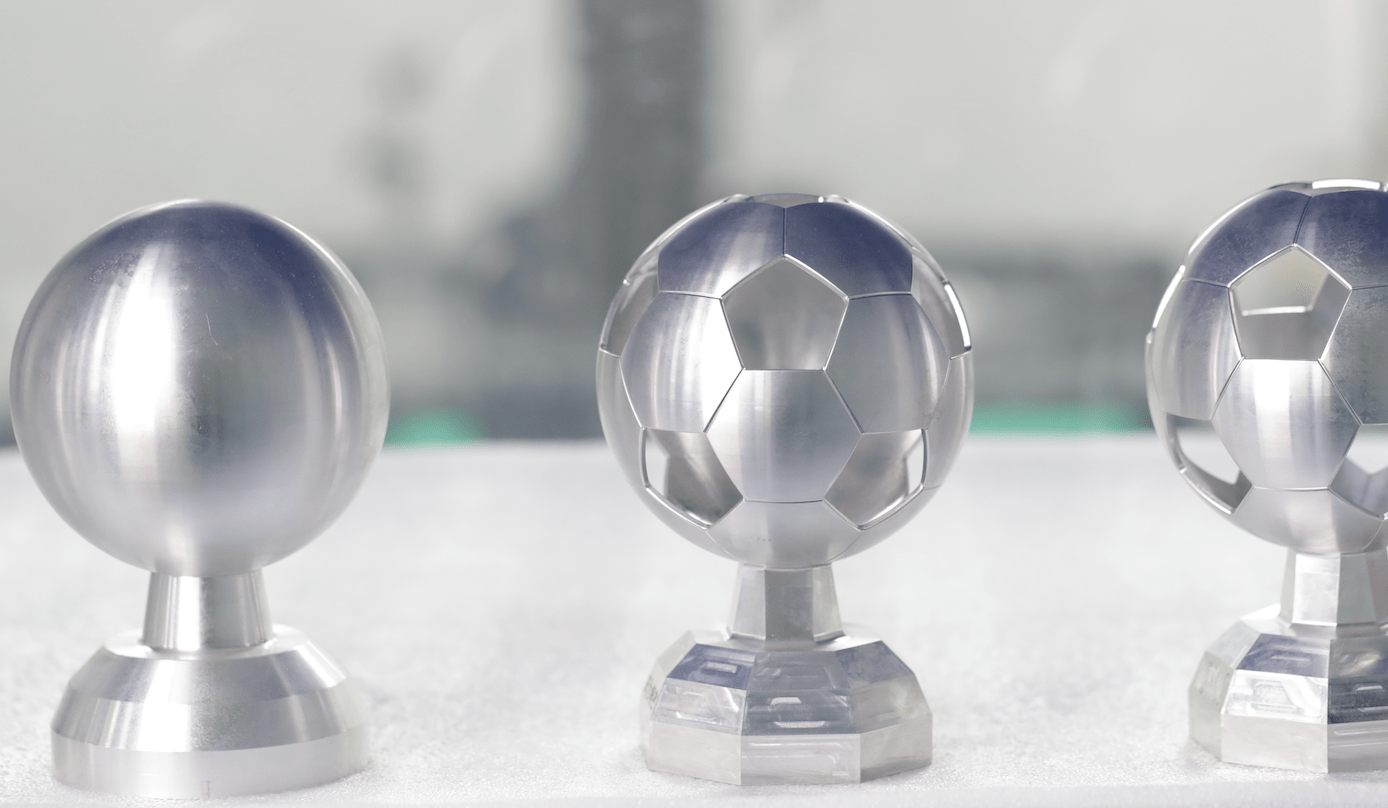

CNC milling is a subtractive process that removes material from a workpiece using a rotating multipoint cutting tool. It produces precise prototypes with complex geometries and is widely used for aerospace, automotive, and medical applications.
CNC turning creates cylindrical prototypes by rotating the workpiece against a stationary single-point cutting tool. It is ideal for shafts, threads, and circular components, providing smooth finishes and high precision.
Multi-axis machining, including 4-axis and 5-axis CNC, enhances precision by allowing movement along multiple directions. It enables complex designs in a single setup, reducing production time and improving accuracy.
For highly intricate designs, Electrical Discharge Machining (EDM) uses electrical sparks to erode material, making it suitable for deep cavities, sharp edges, and hard-to-machine materials.
CNC prototype machining supports a wide range of materials, offering more versatility than 3D printing and injection molding. From plastics and composites to high-strength metals, CNC allows manufacturers to select materials based on strength, durability, and application needs.
Common plastics used include ABS, POM, nylon, PC, PP, PAGF, PMMA, and Teflon, chosen for their lightweight properties, chemical resistance, and ease of machining. These materials are often used for early-stage prototypes or functional testing before switching to metal.
For metals, CNC machining works with aluminum, stainless steel, titanium, brass, copper, and magnesium, providing high strength, corrosion resistance, and thermal stability. Carbon fiber-reinforced plastics (CFRP) are also used when a strong yet lightweight prototype is required.
CNC machining delivers tight tolerances, ensuring prototypes match exact design specifications. Computer-controlled tools minimize human error, making it ideal for industries requiring extreme precision, such as aerospace, medical devices, and automotive manufacturing.
Producing prototypes in small batches allows manufacturers to assess form, function, and fit before mass production. Detecting design flaws early reduces financial risk, as fixing errors at this stage is far cheaper than making changes after large-scale production.
Once a CNC program is set, it can produce identical prototypes with high consistency. Unlike injection molding, which suffers from mold degradation over time, CNC machining maintains exact dimensions across all iterations, ensuring uniform quality.
Since CNC machining does not require molds or tooling, prototypes can be produced quickly. Design modifications are also seamless—engineers simply update CAD files, reducing lead times and accelerating product development.
Unlike additive manufacturing, CNC machining produces smooth, high-quality surfaces with minimal post-processing. This is crucial for prototypes that require tight fits, functional testing, or aesthetic appeal in industries like consumer electronics and medical devices.
Unlike 3D printing or injection molding, CNC machining supports a wide range of materials, from plastics to high-strength metals. This flexibility allows engineers to create functional prototypes that closely resemble final production parts in terms of durability and performance.
CNC machining is more expensive than 3D printing due to material waste, machine time, and labor costs. While it offers greater precision and material options, prototyping costs can be significant, making 3D printing a more affordable alternative for early-stage concept models.
CNC machining is excellent for external features but struggles with complex internal geometries. Since it removes material rather than building up layers, deep cavities and enclosed spaces are difficult to machine. For intricate internal structures, 3D printing may be a better option.
CNC prototyping demands skilled operators for CAD/CAM programming, tool selection, and machine setup. A lack of expertise can lead to errors, material waste, and inefficient machining. Businesses without CNC experience may need to outsource to specialists for high-precision prototypes.
Since CNC machining removes material from a solid block, it generates more waste than additive processes. Material costs can rise, especially when using expensive metals like titanium or stainless steel. While some scrap can be recycled, waste management remains a consideration.
CNC machining and 3D printing serve different prototyping needs. CNC machining offers high precision, material strength, and functional testing, making it ideal for metal and engineering-grade plastic parts. In contrast, 3D printing is faster and more cost-effective for concept models and intricate geometries but lacks CNC’s material variety and mechanical strength.
Injection molding is efficient for mass production but requires costly molds, making it unsuitable for rapid prototyping. CNC machining is better for small batches and design iterations since it does not need molds and allows quick modifications. However, injection molding is preferable for testing materials and final production feasibility.
| Feature | CNC Machining | 3D Printing | Injection Molding |
|---|---|---|---|
| Precision | High (tight tolerances) | Moderate (layer-based) | High (but mold-dependent) |
| Material Variety | Metals & plastics | Limited (mostly plastics & resins) | Limited (moldable plastics) |
| Speed | Moderate (depends on complexity) | Fast | Slow (mold setup required) |
| Cost for Prototypes | Higher (material waste, machining time) | Lower (less material waste) | High (mold costs) |
| Geometric Complexity | Limited (subtractive process) | High (additive, complex shapes) | Moderate (mold constraints) |
| Suitability | Functional prototypes, precision parts | Concept models, complex designs | Mass production, final product testing |
CNC machining is used to create engine components, suspension parts, and braking systems with tight tolerances to ensure performance and safety. It allows manufacturers to test fit and function before mass production, ensuring compatibility with assembly lines.
2. Medical Industry
Medical devices like prosthetics, implants, and surgical tools require microscopic precision and biocompatible materials. CNC machining ensures these prototypes are accurate, durable, and functional, allowing for proper testing before regulatory approval.
Aircraft components such as airfoils, bushings, and manifolds need extreme precision to withstand high stress and temperature variations. CNC machining allows manufacturers to test new designs and materials to ensure safety and reliability in flight.
CNC machining is widely used for smartphone frames, laptop casings, and internal components. It provides smooth surface finishes, precise dimensions, and material strength, allowing brands to refine product designs before mass production.
Robotic arms, automation systems, and precision gears require custom-machined parts with high accuracy. CNC machining enables rapid prototyping and functional testing, ensuring these components perform efficiently under industrial conditions.
Selecting a CNC machining service requires evaluating precision capabilities, material options, and turnaround time. A reliable provider should offer tight tolerances, multi-axis machining, and a variety of metals and plastics to meet diverse prototyping needs.
Experience and expertise matter. Look for manufacturers with proven industry experience, advanced CNC equipment, and skilled engineers. Checking past projects, certifications, and quality control measures ensures the provider can deliver consistent, high-quality prototypes.
Cost and scalability are also key. Some services specialize in one-off prototypes, while others support small-batch or pre-production runs. Consider providers that offer instant quoting, fast lead times, and post-processing options for a seamless prototyping experience.
CNC prototype machining is a precise, reliable, and efficient method for creating functional prototypes across various industries. With its high accuracy, material versatility, and repeatability, it helps manufacturers refine designs before mass production, reducing errors and costs.
If you need high-quality CNC prototypes, choose a trusted cnc rapid prototyping service that meets your precision and material requirements. Contact us via dds@dadesin.com and start your project today!
1. Q: How is the cost of CNC prototype machining calculated?
The cost depends on material selection, part complexity, machining time, and post-processing requirements. Complex geometries, multi-axis machining, and tight tolerances increase costs. Single-piece production is usually more expensive due to setup and programming time.
2. Q: What is the typical lead time for CNC prototype machining?
Lead times vary depending on part complexity, material availability, and machining volume. Simple prototypes can be produced within a few days, while complex multi-axis parts may take 1-2 weeks. Expedited services are available for urgent projects.
3. Q: Can CNC machining be used for soft materials like rubber or foam?
CNC machining is best suited for metals and rigid plastics. Soft materials like rubber and foam are difficult to machine with precision. Alternative methods like waterjet cutting, laser cutting, or molding are more suitable for these materials.
4. Q: Is CNC machining suitable for very small or micro-scale parts?
Yes, but it requires high-precision micro-machining CNC equipment with ultra-fine tooling. CNC micro-machining can achieve ±0.001mm tolerances, making it ideal for medical devices, electronics, and optical components.
5. Q: What post-processing options are available for CNC prototypes?
CNC-machined prototypes can undergo anodizing, powder coating, plating, polishing, and laser engraving to improve appearance, corrosion resistance, and mechanical properties, ensuring they closely resemble the final product.
