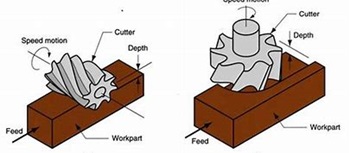

Milling is an essential part of modern manufacturing, allowing for precise shaping and finishing of materials. Two commonly used milling techniques are face milling and peripheral milling. While both processes serve to remove material from a workpiece, they do so in fundamentally different ways, making them suitable for different types of tasks. In this article, we'll explore both processes in detail, comparing their mechanisms, tools, and applications, and help you determine the best method for your specific needs.
Face milling is a machining process where the cutting tool's flat face is used to remove material from the surface of the workpiece. The tool rotates perpendicular to the workpiece surface, with its teeth engaging the surface to create a smooth, flat finish.
The process is effective for broad surface areas, where high material removal rates are needed. Face milling works by engaging the workpiece in both axial and radial directions, allowing for efficient cuts over a large surface area. Typically, face milling tools have multiple inserts or cutting edges, each contributing to material removal. This is why face milling is the go-to process for creating large, flat surfaces quickly.
Peripheral milling involves the use of the side of the cutting tool to remove material. The tool rotates parallel to the surface of the workpiece, with only the outer edges of the tool cutting into the material, removing material along a narrow path.
The cutting tool engages the material radially, meaning the forces are applied in a focused manner. Unlike face milling, which is ideal for broad surface finishes, peripheral milling focuses on narrow, precise cuts, making it perfect for tasks like creating slots, grooves, or profiles.
Peripheral milling is slower than face milling in terms of material removal, but its precision makes it ideal for detailed features, such as keyways or complex profiles.
In face milling, the tool moves across the workpiece, cutting perpendicularly to its surface. This cutting action ensures that the material is removed evenly and consistently, making face milling ideal for large, flat surfaces that need a smooth finish.
By contrast, peripheral milling uses the side of the tool to make narrow, deep cuts. The cutting edges engage with the workpiece in a more focused manner, removing material gradually along the workpiece's side. This method is optimal for creating detailed slots or grooves, and it is often used for parts with intricate profiles that need to be precisely machined.
While both methods are effective, their fundamental cutting actions determine which is more appropriate for a given task: face milling is best for broad, flat surfaces, while peripheral milling is best for detailed, sidewall features.
The cutting forces and tool engagement in face milling and peripheral milling differ significantly, which affects both their efficiency and precision.
In face milling, the cutting tool engages the workpiece's surface simultaneously across multiple cutting edges. This distributed force enables high material removal rates, ideal for roughing operations or when large, flat surfaces need to be processed quickly. The tool's axial engagement means that it removes material from across the entire surface, making it effective for broader operations.
In peripheral milling, however, the cutting tool only engages the material along the outer edges. This results in radial forces that allow for deeper cuts along specific areas. Although it's not as fast in removing material as face milling, peripheral milling's precision makes it the preferred method for detailed cuts like grooves and slots. The cutting action is more focused, allowing for tight tolerances and intricate designs.
While both methods have their strengths, the key difference is how the cutting forces are applied: face milling uses broad engagement for material removal, whereas peripheral milling uses focused cutting for precision.
The tools required for face milling and peripheral milling differ, as the nature of the cutting action dictates the tool design.
Face Milling Tools: These tools are typically larger in diameter and equipped with multiple cutting edges arranged around the tool's face. The large cutting surface allows the tool to engage more material at once, which is ideal for removing large amounts of material quickly. The setup for face milling requires a rigid machine configuration to prevent vibrations, as the larger cutting forces could introduce vibrations that affect precision.
Peripheral Milling Tools: In contrast, peripheral milling tools are often smaller and designed for precision cutting. The tool is designed to cut along its outer circumference, so precision in alignment is critical. Because peripheral milling involves making narrow cuts or working along specific edges, the setup must ensure accuracy throughout the process, especially when making deep or intricate cuts.
The tools are built to accommodate the specific cutting forces each method requires, ensuring that the milling process remains efficient and accurate.
The applications of face milling and peripheral milling differ greatly based on the part geometry and the type of finish required. Here's a comparison:
| Application | Face Milling | Peripheral Milling |
|---|---|---|
| Surface Finishing | Ideal for creating smooth, flat surfaces quickly. | Less effective for flat surfaces; more for narrow cuts. |
| Material Removal Rate | High material removal rate due to broad cutting action. | Slower removal, but more precise cuts. |
| Precision | Best for roughing operations on large parts. | Best for precision cutting in narrow spaces or edges. |
| Part Types | Used for large, flat components like plates, frames. | Used for detailed parts like gears, slots, keyways, etc. |
| Applications | Automotive, aerospace, industrial machinery. | Tooling, precision engineering, small parts manufacturing. |
Face Milling Applications: Face milling is ideal when large, flat surfaces need to be machined or when a high material removal rate is required. For example, face milling is commonly used in the automotive industry for creating engine parts or chassis components, where speed and surface finish are critical.
Peripheral Milling Applications: This method is preferred when precision is the priority. It's commonly used in tooling applications, such as creating keyways, grooves, or slots for parts like gears or electronic housings. The focus on precision allows for intricate profiles that require a high level of detail and accuracy.
Face milling and peripheral milling are essential milling strategies, each with distinct advantages. Face milling is designed for quick material removal over large, flat surfaces, making it the best option for roughing and finishing broad workpieces. On the other hand, peripheral milling excels in precision cuts, making it ideal for detailed tasks like creating grooves, slots, and profiles. By understanding the differences in cutting action, tool engagement, and application areas, you can make a more informed decision and select the right milling method for your project needs.For tailored advice and expert solutions in precision machining, visit DADESIN.
