What is CNC Machining? A Comprehensive Guide to Its Types and Uses

CNC (Computer Numerical Control) machining is a revolutionary process in modern manufacturing that allows for the precise creation of complex parts from various materials. Unlike traditional methods, CNC machining uses computer programs to control the movement of cutting tools, ensuring high accuracy and repeatability. This technology is widely used across industries such as aerospace, automotive, and electronics to produce components that require detailed and intricate designs. In this article, we’ll explore what CNC machining is, its various types, and how it works, helping you understand how it can benefit your manufacturing processes.

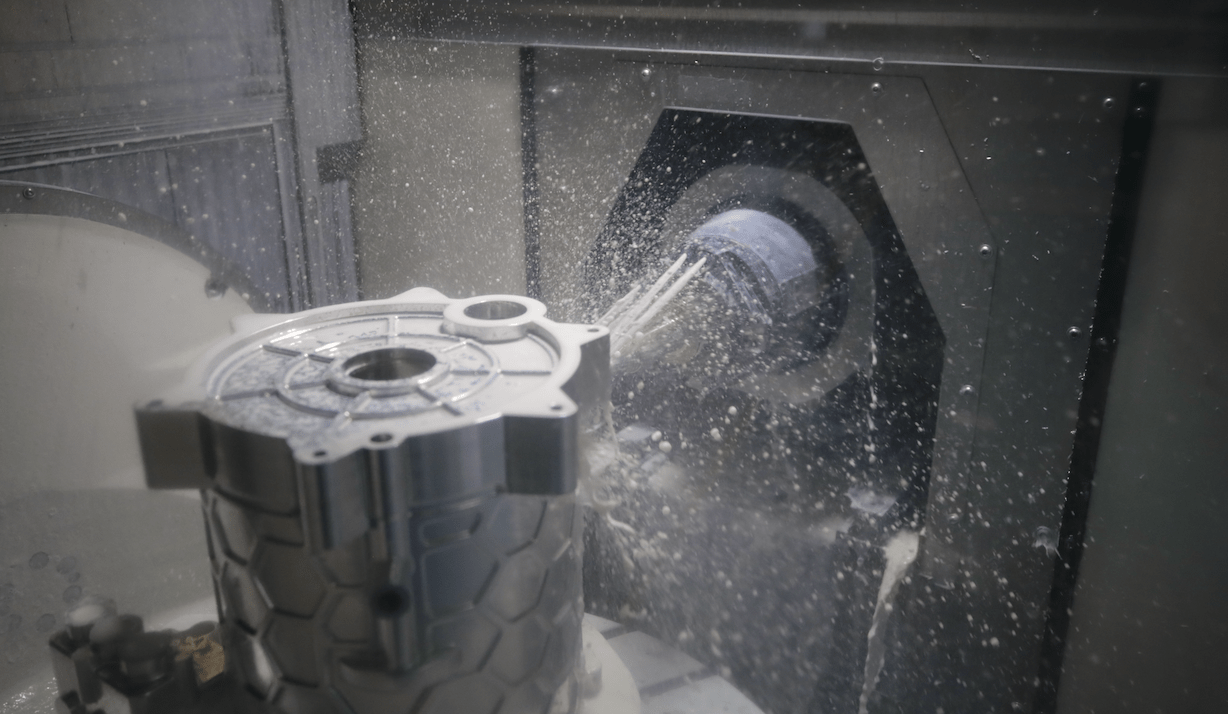

What is CNC Machining?

CNC machining is a computer-controlled manufacturing process where material is removed from a solid block using cutting tools. Unlike 3D printing or injection molding, CNC machining is subtractive, offering high precision and the ability to work with various materials. It’s used in industries like aerospace and automotive to create complex parts based on pre-programmed instructions, ensuring accuracy and repeatability without manual intervention.

Types of CNC machines

In this section, we’ll focus on the most common CNC machines used for subtractive manufacturing, where material is removed using cutting tools. These machines are versatile and widely used across industries. Other types, such as laser cutters, plasma cutters, and EDM machines, also play critical roles in specialized applications.

1. 3-Axis CNC Machines

3-axis CNC machines are the most common and widely used CNC machines in manufacturing. These machines are often the go-to option for basic to moderately complex parts. They operate by moving the cutting tool or the workpiece along three primary axes: X (left to right), Y (front to back), and Z (up and down).

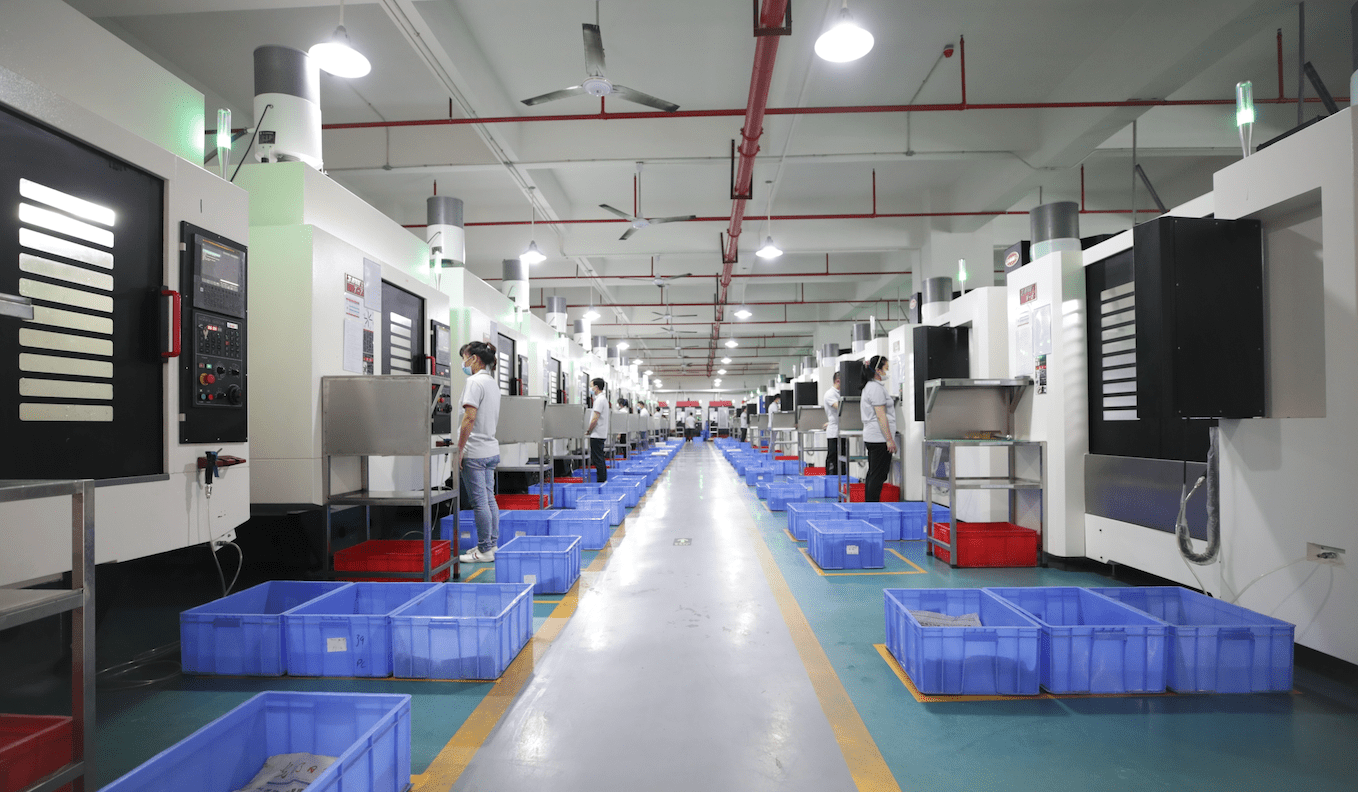

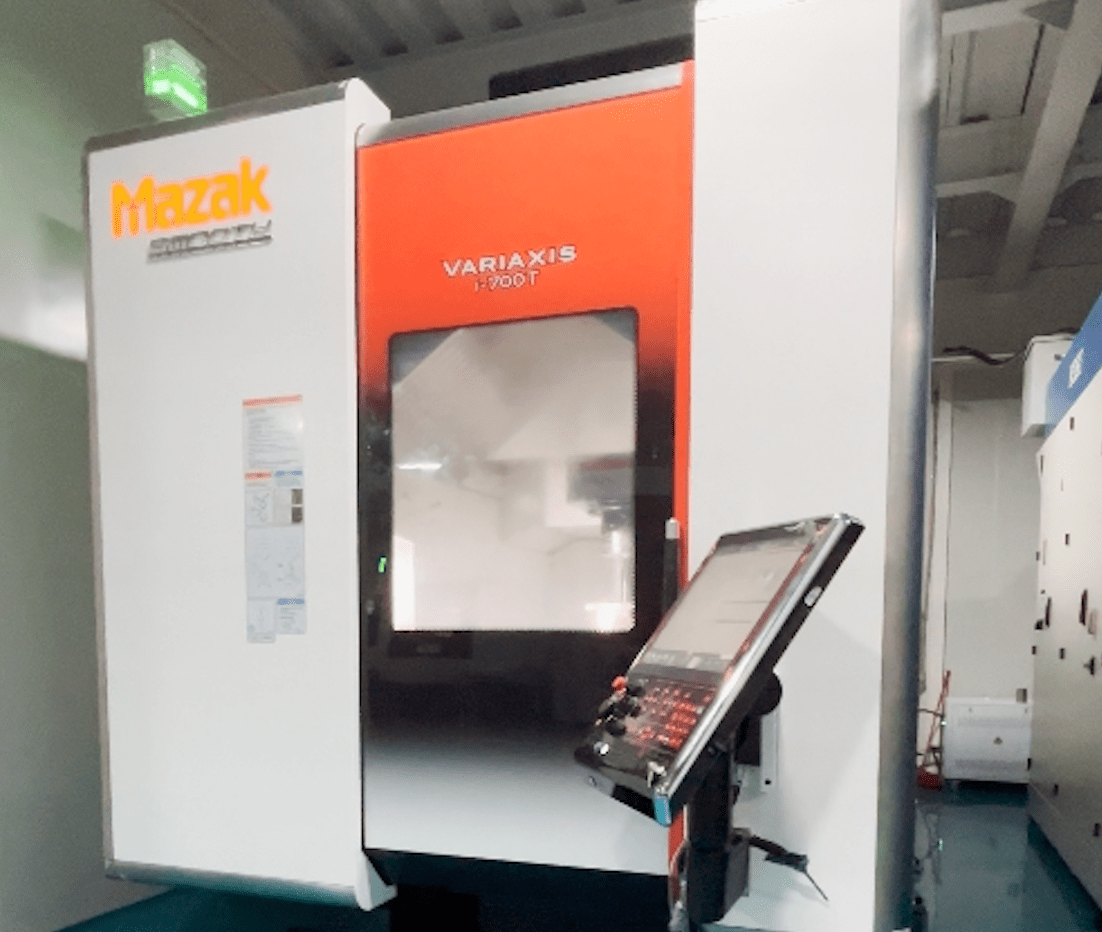

CNC Milling Machines

CNC milling machines use rotating cutting tools to remove material from a stationary workpiece. The workpiece is fixed onto the machine bed, and the cutting tools rotate at high speed to carve out intricate shapes. Milling machines are versatile and can handle a variety of materials, including metals, plastics, and composites. They are often used for tasks like drilling, shaping, and slotting.

• Applications: CNC milling machines are commonly used to create prismatic parts, such as brackets, housings, and molds. They can also be used to produce surfaces, holes, and other complex geometries.
• Advantages:
  • Versatile for most common geometries.
  • Relatively simple to program, making them cost-effective for smaller production runs.
  • High accuracy and precision.
• Limitations:
  • Limited by tool access; some areas of the part may be difficult to reach with the cutting tool, particularly when working with more complex geometries.
  • For parts that require multiple orientations, the workpiece may need to be repositioned manually, which increases time and labor costs.

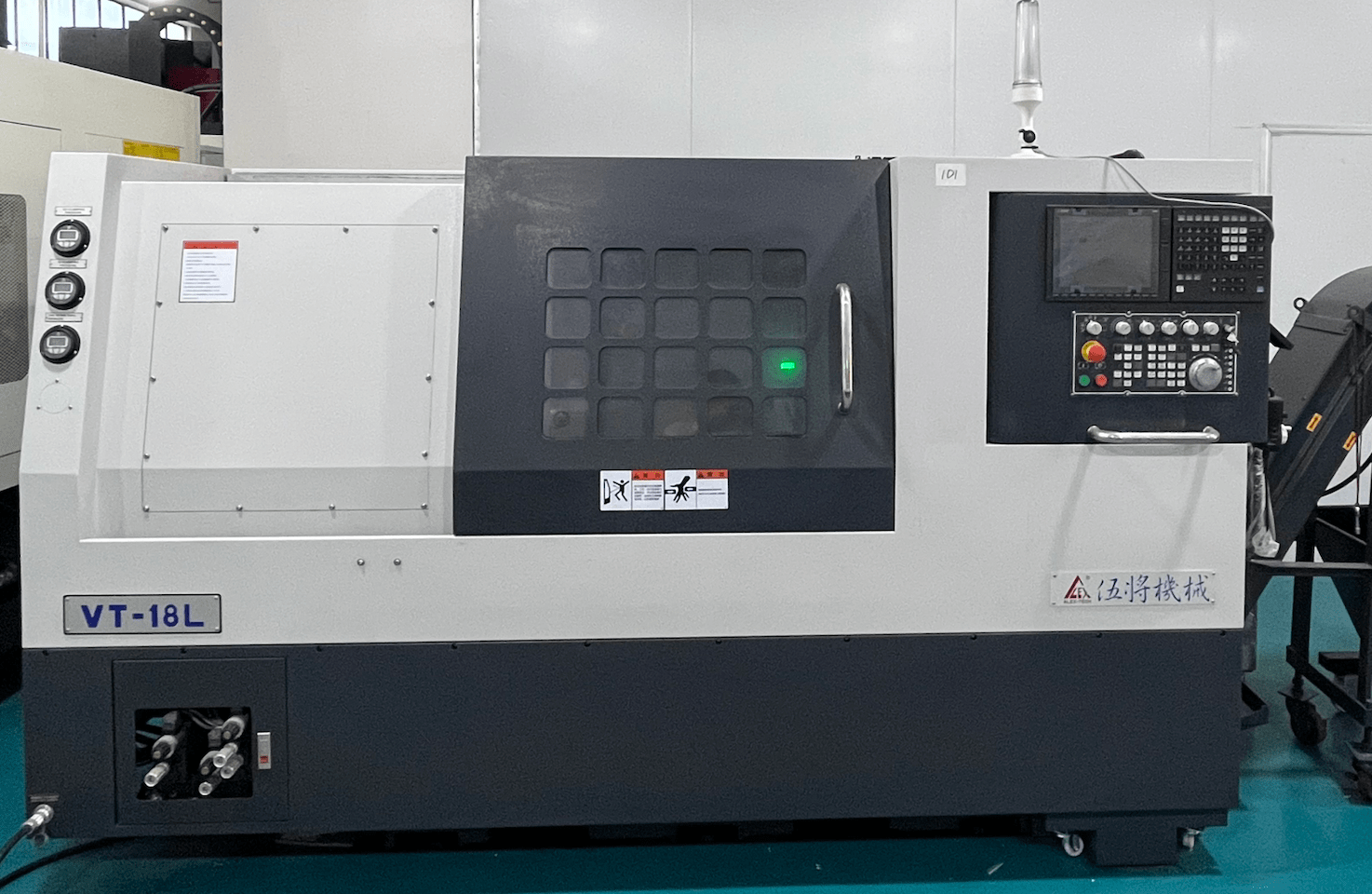

CNC Turning Machines (Lathes)

CNC lathes are designed for producing cylindrical parts. The workpiece is mounted on a spindle, which rotates at high speeds, while a stationary cutting tool removes material from the workpiece’s surface. CNC lathes are best suited for parts with rotational symmetry, such as shafts, bushings, and fasteners.

• Applications: CNC turning machines are used in a variety of industries for producing parts like screws, bolts, rings, and any components that require a cylindrical profile.
• Advantages:
  • Fast production rates and high efficiency for cylindrical parts.
  • Lower cost per part than CNC milling machines.
• Limitations:
  • Only suitable for parts with rotational symmetry, meaning it’s not ideal for producing non-cylindrical parts.
  • More complex shapes often require a secondary machining process.

2. 5-Axis CNC Machines

While 3-axis machines are suitable for simpler parts, 5-axis CNC machines offer more advanced capabilities, making them ideal for more complex, precise, and highly detailed work. These machines combine three linear axes (X, Y, Z) with two additional rotational axes. This allows the cutting tool to approach the workpiece from virtually any angle, providing greater flexibility and precision. Learn more about 5 axis machining.

Indexed 5-Axis CNC Machines (3+2 Systems)

In 3+2 indexed 5-axis systems, the machine operates with three linear axes during the machining process. However, between machining operations, the machine bed or tool head can rotate, offering access to the workpiece from multiple angles. These machines are typically used for parts with complex geometries that require multiple orientations during machining.

• Applications: Aerospace parts, automotive components, medical implants, and intricate molds.
• Advantages:
  • Increased accuracy and speed compared to 3-axis machines for complex geometries.
  • Eliminates the need to manually reposition the workpiece during the process.
• Limitations:
  • Still not as flexible as fully continuous 5-axis machines.
  • Suitable for parts with limited freeform or complex surfaces.

Continuous 5-Axis CNC Machines

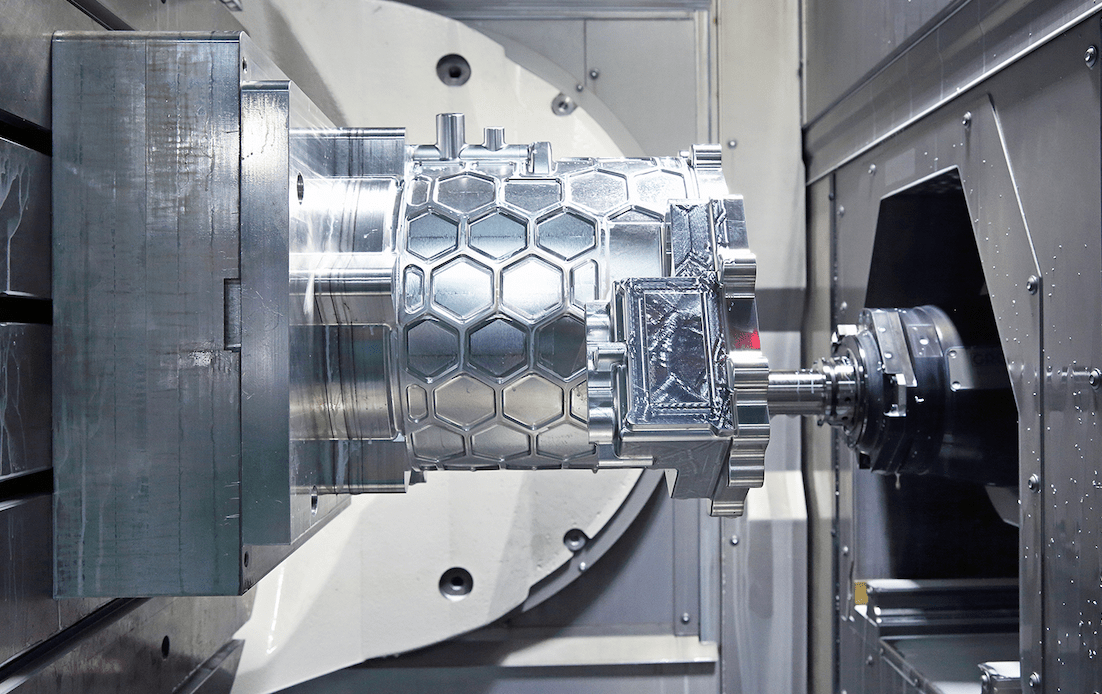

Continuous 5-axis machines offer the highest degree of flexibility. All five axes (three linear and two rotational) move simultaneously during the machining process. This ability allows the production of parts with highly complex, organic shapes that would be impossible to manufacture with lower-axis machines.

• Applications: Advanced aerospace components, medical devices, automotive prototypes, and parts with intricate, freeform geometries.
• Advantages:
  • Can produce extremely detailed and precise parts, including complex and organic shapes.
  • Reduces the need for secondary operations and minimizes post-processing time.
• Limitations:
  • High machine and operational costs.
  • Requires specialized training for operators due to the complexity of the system.
  • Tool access limitations still exist in certain cases.

Mill-Turning CNC Centers

Mill-turning CNC machines combine the capabilities of both milling and turning processes in a single machine. These machines are capable of both rotary (turning) and linear (milling) movements, making them ideal for producing parts that require a combination of operations.

• Applications: Camshafts, centrifugal impellers, and parts with cylindrical and non-cylindrical features.
• Advantages:
  • Versatile for producing parts with mixed geometries.
  • Reduced need for multiple machines, which saves time and cost.
• Limitations:
  • Tool access can be restricted in some complex geometries.
  • Less cost-effective for simple cylindrical parts compared to standard CNC lathes.

3. Specialized CNC Machines

Apart from traditional CNC lathes and mills, there are also specialized machines designed for specific applications. These machines are tailored to processes like cutting, engraving, or forming and can be used in industries where traditional CNC machines may not be suitable.

CNC Plasma Cutters

Plasma cutters use a high-temperature plasma arc to cut through conductive metals like steel, aluminum, and brass. These cutters are highly efficient for cutting thick sheets of metal and can be used for both straight cuts and complex shapes.

• Applications: Metal fabrication, automotive, and structural parts.
• Advantages:
  • High cutting speed and efficiency for thick metals.
  • Can cut metals that would otherwise be difficult to machine with other methods.
• Limitations:
  • The cutting edge is rougher than other methods like laser cutting.
  • Only works with conductive materials.

CNC Laser Cutters

Laser cutting uses a focused laser beam to cut or engrave materials with extreme precision. CNC laser cutters are capable of producing intricate designs with smooth edges, making them ideal for fine detailing.

• Applications: Electronics, fine detailing in jewelry, and small component prototypes.
• Advantages:
  • High precision and smooth edge finishes.
  • Suitable for a variety of materials, including metal, plastic, and wood.
• Limitations:
  • High operational costs.
  • Slower than plasma cutting for thicker materials.

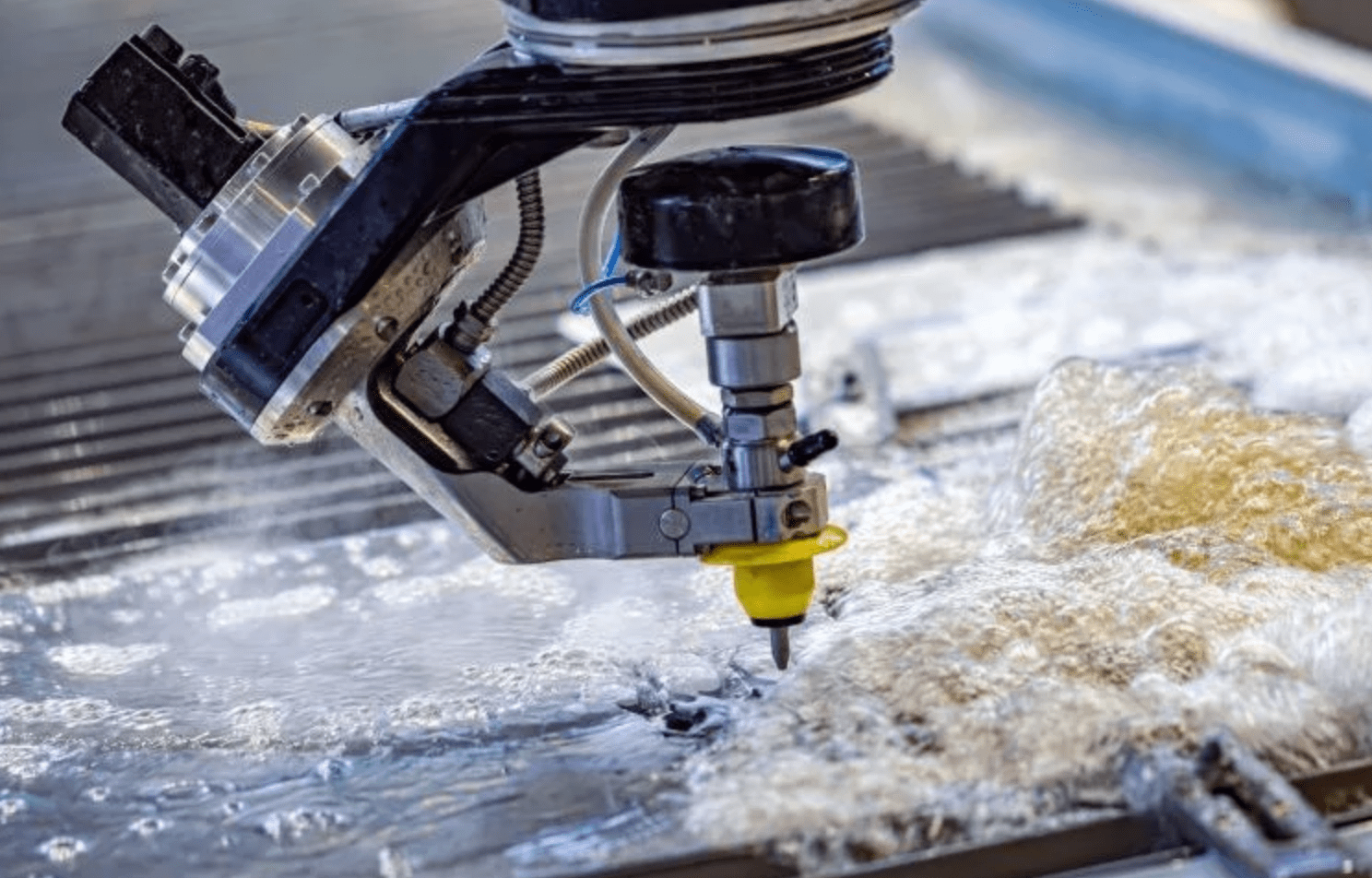

CNC Waterjet Cutters

Waterjet cutters use high-pressure water streams, often mixed with abrasives, to cut through materials. This process doesn't involve heat, making it ideal for cutting heat-sensitive materials like stone, glass, or plastics.

• Applications: Cutting tiles, glass, composite materials, and thick metal sheets.
• Advantages:
  • No heat-affected zone, preventing material deformation.
  • Can cut a wide variety of materials.
• Limitations:
  • Slower cutting speeds than plasma or laser cutters for some materials.

CNC machines are integral to modern manufacturing, offering unmatched precision, speed, and versatility. From simple 3-axis machines to advanced 5-axis systems and specialized cutters, each type has its own unique strengths and is best suited for specific applications. Understanding the capabilities and limitations of each type will help you select the right machine for your needs, ensuring optimal production quality and efficiency.

How CNC Machining Works

CNC machines operate by executing pre-programmed instructions sent from a computer. These machines don't require manual operation like traditional machinery. Instead, they follow specific commands written in CNC programming languages such as G-code and M-code. These codes control the machine's movements, speed, feed rate, and tool operations, ensuring high precision and efficiency.

Each CNC machine has a microcomputer (MCU) that interprets the code, allowing the machine to carry out tasks like cutting, drilling, or shaping based on detailed CAD (Computer-Aided Design) files. The machine follows a set sequence of commands that can control various aspects of the manufacturing process, from the precise movement of the tool to the speed at which material is removed. This fully automated operation allows for high repeatability and accuracy, which is a significant advantage over manual machining processes.

Benefits & Limitations of CNC Machining

Benefits of CNC Machining

While CNC machining offers numerous advantages, it is not without its limitations. Below is an overview of the key benefits and drawbacks:

1. High Precision and Consistency

CNC machines are known for their incredible accuracy and repeatability. Once a program is written and loaded into the system, it can produce identical parts with tight tolerances every time. This is especially crucial in industries like aerospace, automotive, and medical devices, where high precision is a must.

2. Automation and Reduced Labor Costs

CNC machining eliminates the need for constant human intervention. The machine operates automatically, allowing manufacturers to reduce labor costs. Operators mainly focus on setting up the machine, monitoring production, and making adjustments when necessary. This also leads to fewer errors caused by human factors.

3. Complex Geometries and Design Flexibility

CNC machining can produce highly complex parts that would be extremely difficult or impossible to achieve using traditional manual methods. Advanced machines like 5-axis CNC mills allow for intricate, multi-dimensional shapes with minimal additional setup.

4. Speed and Efficiency

Since CNC machines are automated, production runs can be much faster than manual machining. This leads to higher throughput, particularly for high-volume production. Furthermore, CNC machines can operate continuously (24/7) if required, maximizing efficiency.

5. Material Variety

CNC machines can handle a wide range of materials, including metals, plastics, wood, and composites. This flexibility allows manufacturers to produce parts in various industries and for different applications using the same equipment.

6. Reduced Waste

CNC machining is a subtractive process, meaning material is precisely cut away from a workpiece. This leads to reduced material waste compared to other manufacturing methods like casting, where excess material might be produced and discarded.

Limitations of CNC Machining

1. High Initial Investment

While CNC machines can save money in the long run, their initial cost is often much higher than manual machines. The cost of the equipment, software, and setup can be prohibitive for smaller manufacturers or businesses just starting out.

2. Maintenance and Repair Costs

CNC machines are highly sophisticated, meaning that they can require regular maintenance and repair. While downtime is typically minimal, repairs can be costly, especially if specialized parts are needed. Regular maintenance is necessary to keep the machines operating at their best.

3. Tool Access Restrictions

Despite their advanced capabilities, some CNC machines still have limitations on the accessibility of certain areas of the workpiece. For example, in 3-axis machines, parts of the geometry may not be reachable without repositioning the workpiece, which could add to production time and reduce accuracy.

4. Complexity in Programming

While CNC machines are capable of performing complex tasks, writing the programs to control them can require skilled personnel who are trained in CAD and CAM software. For intricate designs, the programming process can be time-consuming and require precise input to ensure the correct execution of tasks.

Applications of CNC Machining

CNC machining is a versatile manufacturing method with a wide range of applications across numerous industries. Thanks to its precision, repeatability, and ability to handle complex geometries, CNC machining is used in the production of parts and components for everything from high-performance machinery to consumer products. Below are some key industries and applications where CNC machining is commonly used:

Aerospace

In aerospace, CNC machining is critical for manufacturing high-precision components such as turbine blades, engine parts, and structural components. The strict tolerance requirements and safety standards make CNC machining the ideal choice for producing parts that must meet rigorous performance criteria.

Automotive

The automotive industry relies on CNC machining for producing engine components, transmission parts, chassis, and custom performance parts. CNC machines allow for both high-volume production and the flexibility needed for custom designs, making them essential for modern automotive manufacturing.

Medical Devices

CNC machining is used in the production of medical implants, surgical instruments, and diagnostic equipment, where high precision and biocompatibility are required. Materials like titanium and stainless steel are commonly used for these parts, ensuring reliability and durability in medical applications.

Electronics

In electronics, CNC machining is used to produce components like heat sinks, casings, connectors, and circuit boards. The high precision needed for these small, intricate parts makes CNC machining indispensable in manufacturing consumer electronics, medical devices, and telecommunication equipment.

Consumer Products

CNC machining plays a vital role in manufacturing parts for everyday consumer products like home appliances, sports equipment, and furniture. Its ability to handle both large and small production runs makes it ideal for producing durable, high-quality parts for various consumer goods.

Energy Sector

CNC machining is widely used in the energy industry to produce components such as turbine blades, valves, pumps, and solar panel parts. These components must withstand high stress and pressure, and CNC machining provides the precision and strength required for these critical applications.

Material Choices for CNC Machining

Choosing the right material for CNC machining is crucial for ensuring the performance, durability, and functionality of the final part. The optimal material depends on the specific requirements of the application, including strength, weight, resistance to wear, and environmental factors. This section focuses on metals and plastics, which are most commonly used for CNC machining in engineering applications.

Choosing the right material for CNC machining depends on the specific requirements of your application, including strength, weight, thermal properties, and resistance to wear or corrosion. Metals such as aluminum, stainless steel, and tool steels offer high strength and durability, while plastics like ABS, nylon, and PEEK provide cost-effective, lightweight solutions for various applications. Understanding the material properties, along with machining capabilities, will help ensure the optimal selection for your CNC project.

CNC Machining Surface finishes

Surface finishes are an essential consideration in CNC machining, as they directly impact the final appearance, performance, and functionality of a part. The right surface finish can improve the part's durability, reduce friction, and enhance its aesthetic qualities. While some applications may require a high-gloss, mirror-like finish, others may prioritize functionality over appearance.

Common surface finishes in CNC machining include:

• Anodizing: Often used for aluminum parts, anodizing increases surface hardness and corrosion resistance.
• Polishing: Provides a smooth, glossy surface, typically used for aesthetic applications.
• Bead Blasting: Creates a matte finish by blasting the surface with small beads, often used for reducing surface friction or improving the appearance.
• Powder Coating: A protective finish applied as a dry powder, typically used for metal parts to offer durability and resistance to corrosion.

For a more detailed look at different surface finishes and their applications, visit our dedicated page on Surface Finishes.

Precision and Tolerance Control in CNC Machining

Several methods are used to control tolerances and ensure the final product meets the required precision:

1. Machine Calibration: Regular machine calibration is essential to ensure CNC machines maintain high accuracy. Calibration involves adjusting the machine's movements along each axis and checking for any mechanical errors or wear. Well-calibrated machines reduce machining errors caused by machine imperfections.

2. Feed Rate Adjustment: The feed rate is the speed at which the cutting tool moves relative to the workpiece. If the feed rate is too fast, it can result in rough surfaces or dimensional errors, while too slow a feed rate can reduce machining efficiency. Proper feed rate adjustment ensures that the cutting process is stable and maintains precise tolerances.

3. Temperature Control: Temperature fluctuations can cause dimensional changes in the machine, tooling, and workpiece materials, affecting precision. By maintaining a stable temperature environment, using temperature control systems, or selecting materials with low thermal expansion, the impact of temperature variations on tolerance can be minimized.

4. Cutting Force Control: Excessive cutting force can lead to machine or workpiece deformation, resulting in poor accuracy. By choosing the right tools, cutting parameters, and lubrication, cutting forces can be controlled, ensuring that the workpiece remains stable during the machining process.

5. Tool Wear Monitoring: Over time, cutting tools experience wear, which can lead to a loss of precision. Regular tool inspections and replacements, as well as using high-performance tool materials, help reduce tolerance deviations caused by tool wear.

By combining these strategies, CNC machining can achieve high precision and maintain tight tolerances, meeting the specific requirements of different industries.
